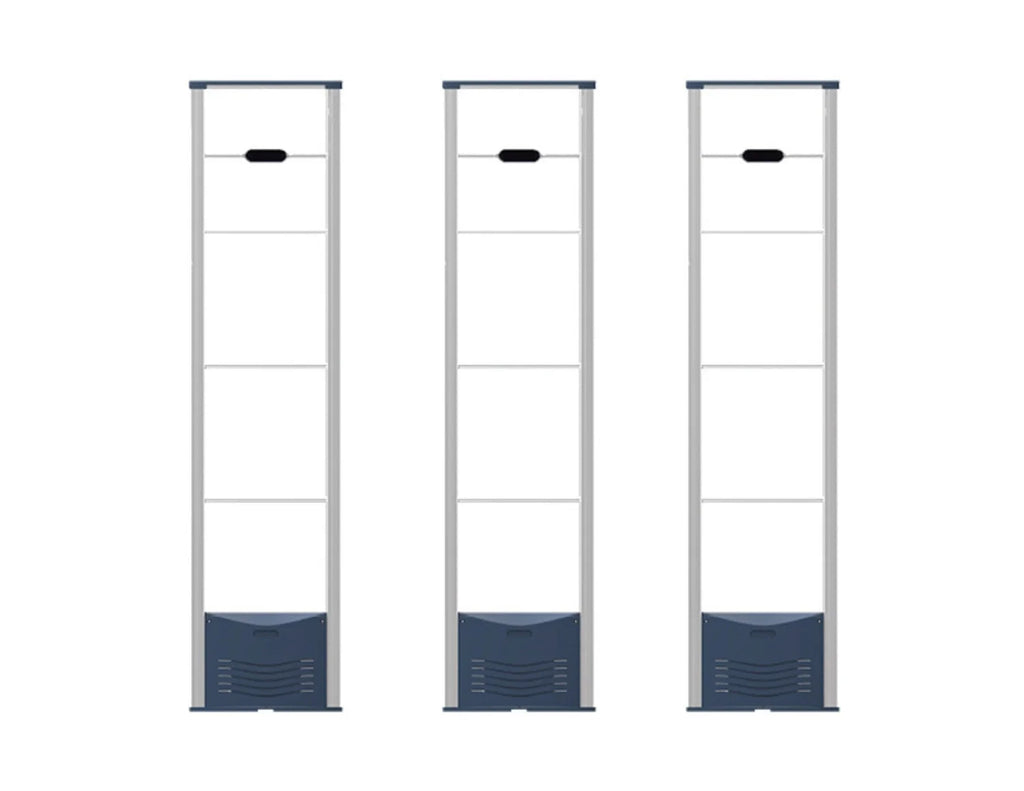

G1000 RF Transceiver System - 8.2 MHz - Dual Aisle - 3 Pedestal
HarryG Security · Pedestals
$5,999.85
Electrical and installation requirements
All detection systems require a dedicated 120 VAC circuit, 3 wire, grounded, shielded, with 24 hour unswitched power and less than 0.5 VAC between neutral and ground. The dedicated outlet must be located 6" to 12" above the floor, with the circuit breaker labeled "EAS" at the panel. Dual pedestal systems sharing one power supply also require 3/4" metal conduit (EMT or rigid, no PVC) with a pull string, run under the floor, with pedestals set no more than 72" center to center. Dedicated electric must be installed to specification before system installation, or the warranty is void.
Specifications and details
| Technology | 8.2 MHz radio frequency (RF) |
| Condition | New |
| SKU | C1005-3 |
| Support | Phone support, Monday to Friday 8am to 5pm ET |
Description
Three pedestal RF EAS detection system operating at 8.2 MHz. Covers dual aisle entrances up to 18 feet wide, two 6-foot aisles plus 3 feet of side coverage on each outer pedestal.
Specifications
- Frequency: 8.2 MHz (RF)
- Detection coverage: up to 18 feet wide (two aisles)
- Configuration: 3 pedestals
- Model: C1005 Grand 8.2 RF Transceiver Antenna (G1000)
- Tag compatibility: all 8.2 MHz RF security tags and labels
Included
- 3 x G1000 pedestals
- Power supplies
Installation
Professional installation required. Call 1-866-427-3824 Mon Fri 8am-5pm ET for installation availability.
